AT070TN92 Innolux 7.0" 800(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : INNOLUX

Model Number : AT070TN92

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 5000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : AT070TN92

BRAND : INNOLUX

SIZE : 7.0INCH

RESOLUTION : 800(RGB)×480 [WVGA] 134PPI

BRIGHTNESS : 250CD/M2

VIEWING ANGLEG : 70/70/50/70 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

Innolux AT070TN92 Application Details

Basic Info :
Panel Brand

AT070TN92AT070TN92 Innolux 7.0" 800(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY 1 CompatiblePanel Model
Diagonal Size
7.0"
Application






Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating
Specific Features :






Remarks :
DE/SYNC mode selectable, 2 in 1 FPC

Innolux AT070TN92 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×480, WVGA
Dot Pitch
0.0642×0.1790 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1926×0.1790 mm (H×V) [134PPI]
Mechanical Size :
Display Area
154.08×85.92 mm (H×V)
Bezel Area
156.7×89.1 mm (H×V)
Outline Dim.
164.9×100 mm (H×V)
Outline Depth
5.7±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Holes & Brackets :
Without
Other Features :
Weight
150g (Typ.)
Surface
Antiglare

Innolux AT070TN92 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
10/15 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Color Numbers
262K/16.7M (6-bit / 6-bit + Dithering)
Color Temperature
6638K
Uniformity
1.33/1.43 (Typ./Max.)(9 points)

Innolux AT070TN92 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Power Consumption :
1.90W (Typ.)
Time Controller (T-CON) :
Embedded T-CON

Innolux AT070TN92 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
3S9P
Life Time
20K(Min.) (Hours)
Replacement
-
Lamp Shape
Array
Position
Edge light type
Lamp Electrical :
Voltage Input
9.3±0.6V
Current Input
170/180/200mA (Min./Typ./Max.)
Consumption
1.674W (Typ.)
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No

Innolux AT070TN92 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 6/8-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :
Voltage Input
3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Current Input
4.0/20.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL)
Consumption
226mW (Typ.)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
0.5 mm
50 pins
1 pcs
DRGB-50P1C8B-115A

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

AT070TN92 Innolux 7.0" 800(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

CCFL TFT LCD Screen



SVGA Sharp LCD Display


China AT070TN92 Innolux 7.0" 800(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY wholesale

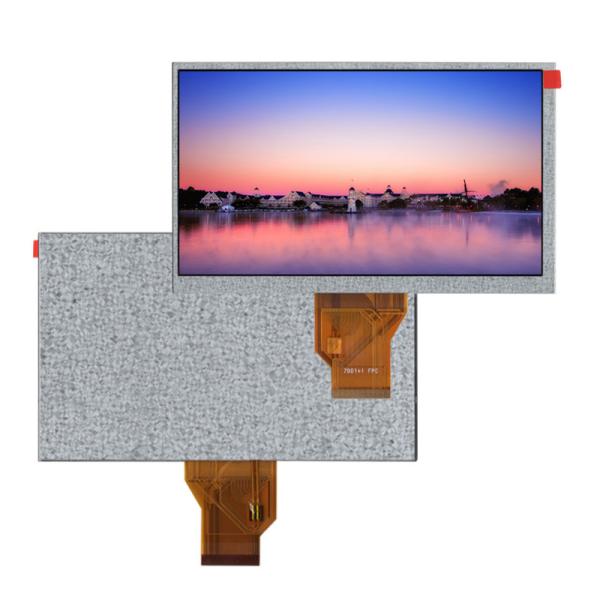

AT070TN92 Innolux 7.0" 800(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY Images
