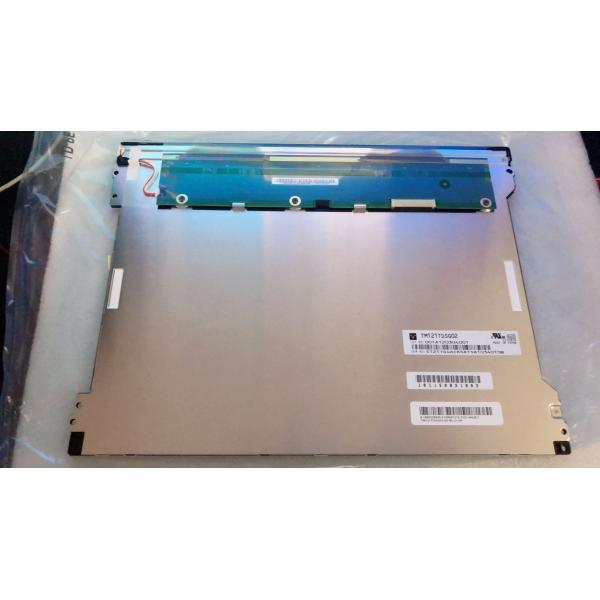

12.1" RGB 1024×768 450cd/m2 Tianma TFT TM121TDSG01 XGA 105PPI

Name: 121quot RGB 1024768 450cdm2 Tianma TFT TM121TDSG01 XGA 105PPI
Brand: TIANMA
Price: 1 USD

China 12.1" RGB 1024×768 450cd/m2 Tianma TFT TM121TDSG01 XGA 105PPI wholesale

Brand Name : TIANMA

Model Number : TM121TDSG01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM121TDSG01

BRAND : TIANMA

SIZE : 12.1INCH

RESOLUTION : 1024(RGB)×768 [XGA] 105PPI

BRIGHTNESS : 450CD/M2

Viewing Angle : 80/80/70/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C

SIGNAL LNTERFACE : LVDS

Contact Now

TIANMA TM121TDSG01 Application Details

Basic Information :	Brand		Model	TM121TDSG01
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	12.1"	Alias	-
Environment :	Storage Temp.	-30 ~~ 80 °C	Operating Temp.	-30 ~~ 80 °C
Environment :	RoHS		Vibration	1.2G (11.76 m/s²)
Typical Features :

TIANMA TM121TDSG01 Mechanical Details

Pixel Features :	Resolution	1024(RGB)×768, XGA	Dot Pitch(mm)	0.080×0.240 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.240×0.240 (H×V) [105PPI]
Mechanical Size :	Active Area(mm)	245.76(H) × 184.32(V)	Bezel Area(mm)	250.8(H) × 189.4(V)
Mechanical Size :	Outline Dim.(mm)	279(H) × 209(V)	Depth(mm)	6.0/9.0 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Mounting :	Face mounting holes (3-Φ3.4, 3-R1.7) on left, right bezel
Other Spec :	Weight	TBD	Treatment	Antiglare

TIANMA TM121TDSG01 Optical Details

Basic Information :	Luminance(cd/m²)	450 (Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/70/80 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	12 o'clock	Response(ms)	35 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	-	Display Colors	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance :	Color Temperature	-	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)

TIANMA TM121TDSG01 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (180°)
Power Consumption :	6.4W (Typ.)

TIANMA TM121TDSG01 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	-
Signal Type :	LVDS (1 ch, 6/8-bit)			Signal Voltage	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	STM	MSB240420HE	1 pcs	20 pins	1.25 mm	LVDS-20P1C8B-080G

TIANMA TM121TDSG01 Backlight Details

Backlight Features:	Shape	2 strings	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	9S2P	Life Time	50K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply	28.8V (Typ.)		Current Supply	70mA (Typ.)
Lamp Electrical :	Consumption	4.03W (Typ.)
Backlight Driver :	No

TIANMA TM121TDSG01 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	10 pcs / box	-	395×311×377 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
