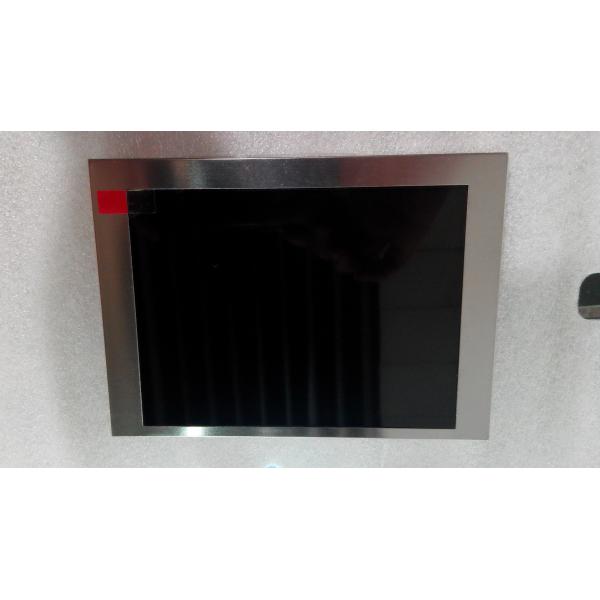

TM057KDH02 TIANMA 5.7" 320(RGB)×240 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

TM057KDH02 TIANMA 5.7" 320(RGB)×240 400 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : TIANMA

Model Number : TM057KDH02

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 3000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM057KDH02

BRAND : TIANMA

SIZE : 5.7 inch

RESOLUTION : 320(RGB)×240 [QVGA] 70PPI

BRIGHTNESS : 400 cd/m² (Typ.)

Viewing Angle : 70/70/60/70 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM057KDH02 Application Features

Basic Information : Brand Name Model Name Type Model Alias
TM057KDH02 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
-20 ~ 70 °C -30 ~ 80 °C -
Application :
Typical Features :




Remarks : lamp wire length: 280mm

TIANMA TM057KDH02 Mechanical Features

Screen Size : 5.7"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
320(RGB)×240, QVGA RGB Vertical Stripe 0.120×0.360 mm 0.360×0.360 mm [70PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
115.2×86.4 mm 118.2×89.4 mm 144×104.6 mm 12.8 (Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
TBD - Antiglare, Hard coating (3H)
Holes & Brackets : Rear mounting poles (4-Φ2.6)

TIANMA TM057KDH02 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
400 cd/m² (Typ.) TN, Normally White, Transmissive 500:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 70/70/60/70 (Typ.)(CR≥10) 20 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
5814K 262K (6-bit) X:0.324; Y:0.362
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
54% 73% 56%
DCI-P3 Coverage Rec.2020 Coverage Remarks
55% 40% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.33 (Typ./Max.)(9 points)

TIANMA TM057KDH02 Electronics Features

Refresh Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)

TIANMA TM057KDH02 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type 50K(Typ.) 5S3P 3 strings -
WLED Electrical : Input Voltage Input Current Power Consumption
14.85/18.15V (Min./Max.) 25mA (Typ.) 1.24W (Typ.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST SHLP-06V-S-B 1 pcs 6 pins 1.0 mm BLE-6PINS-AAACCC

TIANMA TM057KDH02 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 145/225mA (Typ./Max.) -
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Signal Type Physical Type Interface Position
Parallel RGB (1 ch, 6-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
STARCONN 089H33-000100-G2-R 1 pcs 33 pins 0.5 mm DRGB-33P1C6B-020B

TIANMA TM057KDH02 Packing Features

Package Box : Amount Weight Size (L×W×H)
40 pcs / box TBD 530×350×250 mm (L×W×H)
