LG Display LM315WR1-SSA1 Application Details
| Basic Information : | Brand | | Model | LM315WR1-SSA1 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 32.0" | Alias | LM315WR1 (SS)(A1) |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
LG Display LM315WR1-SSA1 Mechanical Details
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.06053×0.18159 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.18159×0.18159 (H×V) [139PPI] |
| Mechanical Size : | Active Area(mm) | 697.306(H) × 392.234(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 709.2(H) × 405.48(V) | Depth(mm) | 10/14.2 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | 4-side borderless |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting holes (9-M3) |
| Other Spec : | Weight | 4.52/4.75Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM315WR1-SSA1 Optical Details
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 14 (Typ.)(G to G) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 77% | sRGB | 99% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 80% coverage |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM315WR1-SSA1 Interface Details
| Signal Electrical : | Voltage Supply | 10.0V (Typ.) | Current Supply | 0.85/1.06A (Typ./Max.) |
| Consumption | 8.5/10.6W (Typ./Max.) |
| Signal Type : | eDP (4 Lanes), HBR2 (5.4G/lane) | Signal Voltage | - |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 30 pins | 0.5 mm | EDP-30P4L-060A |
LG Display LM315WR1-SSA1 Backlight Details
| Backlight Features: | Shape | 2 strings × 2CN | Type | WLED | Position | Edge light type (Bottom side) |
| Replacement | - | Quantity | 17S4P | Life Time | 30K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 55.5±3.8V | Current Supply | 110/115mA (Typ./Max.) |
| Consumption | 24.4/26.1W (Typ./Max.) |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| YEONHO | 10035WR-H06D | 2 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAANC |
| Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.306(W)×392.234(H) mm, outline size of 709.2(W)×405.48(H)×14.2(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 4.52/4.75Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM315WR1-SSA1 can provides 350 cd/m² display brightness 1300:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (sRGB). This product adopted 17S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM315WR1-SSA1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.)
|
|

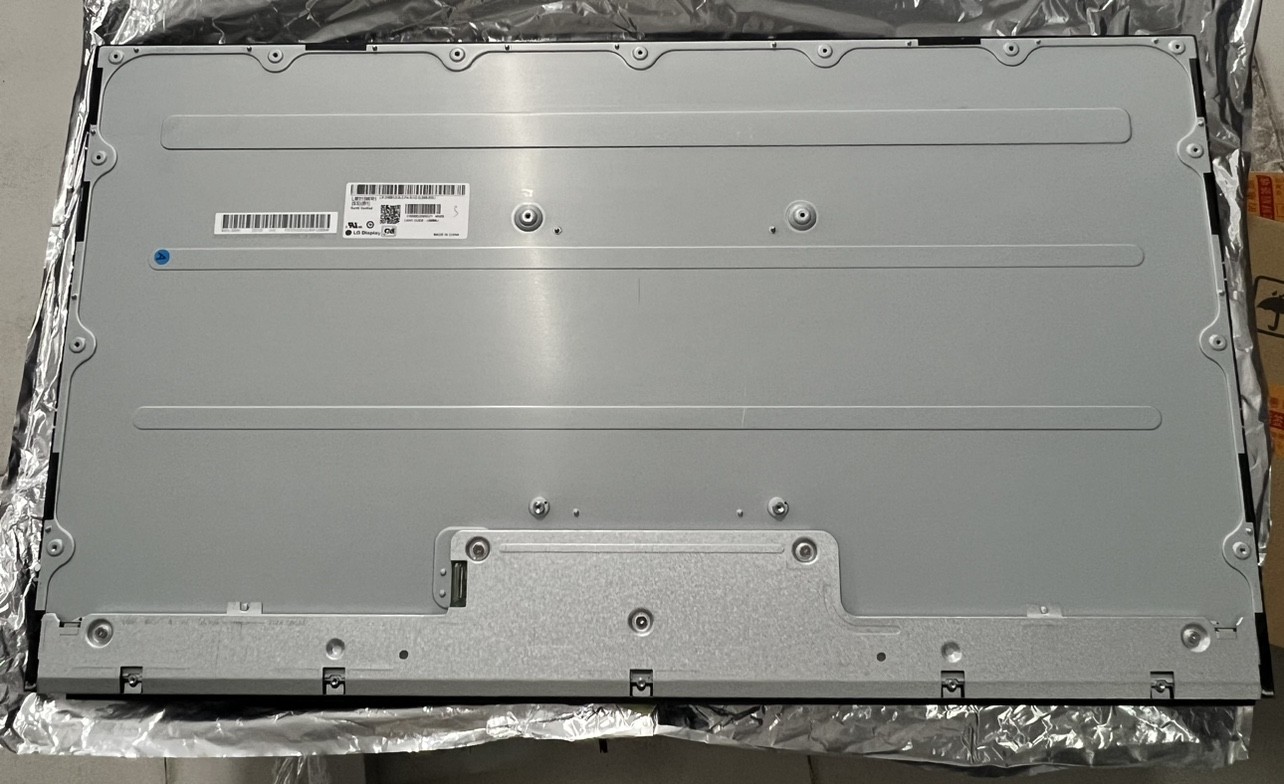

LM315WR1-SSA1 LG Display 32.0" 3840(RGB)×2160, UHD 139PPI 350 cd/m² INDUSTRIAL LCD DISPLAY Images
|
