BOE NE133QDM-N61 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
| | NE133QDM-N61 | Oxide TFT-LCD , LCM | BOE0981 |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| | 0 ~ 50 °C | -20 ~ 60 °C |
BOE NE133QDM-N61 Mechanical Features
| Screen Size : | 13.3" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 2560(RGB)×1600, WQXGA | RGB Vertical Stripe | 0.03725×0.11175 mm | 0.11175×0.11175 mm [227PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 286.08×178.8 mm | - | 291.08×194.3 mm | 2.0 (Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | Landscape type | Slim (PCBA Flat, T≤3.2mm) |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 175g (Max.) | - | Antiglare, Hard coating (3H) |
| Holes & Brackets : | Without |
BOE NE133QDM-N61 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 400 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 1500:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 74% | 100% | 76% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 77% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25/1.67 (Max.)(5/13 points) |
BOE NE133QDM-N61 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| WLED | Edge light type (Bottom side) | 15K(Min.) | 9S6P | 6 strings | - |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
| With LED Driver | Included in signal interface | - |
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption |
| 5.0/12.0/21.0V (Min./Typ./Max.) | - | 2.4W (Max.) |
BOE NE133QDM-N61 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 3.3V (Typ.) | 182mA (Max.) | 0.6W (Max.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| eDP (4 Lanes), eDP1.4, HBR1 (2.7G/lane) | Connector | |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STM | MSAK24025P40G | 1 pcs | 40 pins | 0.5 mm |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 286.08(W)×178.8(H) mm, outline size of 291.08(W)×194.3(H)×2(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 175g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE133QDM-N61 can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (Adobe). This product adopted 9S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NE133QDM-N61 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

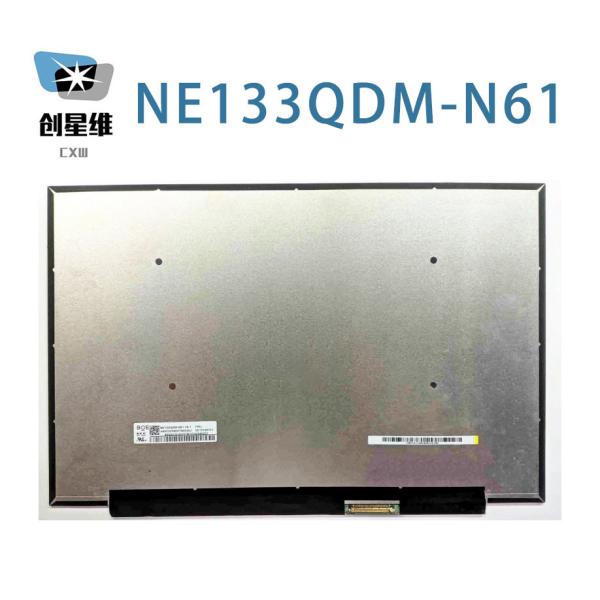

NE133QDM-N61 BOE 13.3" 2560(RGB)×1600, 400 cd/m² INDUSTRIAL LCD DISPLAY Images
|
